Multisite Harmonization using Inter-Site Matched Interpolation (ISMI)

This notebook demonstrates the use of InterSiteMatchedInterpolation for harmonizing multi-site neuroimaging data.

Unlike IntraSiteInterpolation which balances classes within each site independently, ISMI creates synthetic samples by interpolating between matched subjects across different sites, reducing site-related confounds while preserving biological signal.

Imports

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns

from uniharmony import verbosity
from uniharmony.datasets import make_multisite_classification
from uniharmony.interpolation import InterSiteMatchedInterpolation


verbosity("warning")
sns.set_theme(style="whitegrid")

Data generation

Generate Synthetic Multi-Site Data

We create a dataset with 3 sites, simulating a scenario where:

• Site A: Younger population, slight class imbalance

• Site B: Older population, different feature distribution

• Site C: Mixed population, different acquisition protocol

# Generate base dataset
X, y, sites = make_multisite_classification(n_samples=600, n_features=2, n_classes=2, n_sites=3, balance_per_site=[0.2, 0.5, 0.8])

# Simulate site-specific age and sex covariates for matching
site_names = np.unique(sites)
n_per_site = len(X) // len(site_names)

ages = np.concatenate(
    [
        np.random.normal(50, 20, n_per_site),  # Site A: young
        np.random.normal(50, 20, n_per_site),  # Site B: old
        np.random.normal(50, 20, n_per_site),  # Site C: mixed
    ]
)

sex = np.concatenate(
    [
        np.random.choice(["M", "F"], n_per_site, p=[0.9, 0.1]),  # Site A: male-biased
        np.random.choice(["M", "F"], n_per_site, p=[0.5, 0.5]),  # Site B: balanced
        np.random.choice(["M", "F"], n_per_site, p=[0.1, 0.9]),  # Site C: female-biased
    ]
)

# Reshape for the interpolator
categorical_covariate = sex.reshape(-1, 1)
continuous_covariate = ages.reshape(-1, 1)

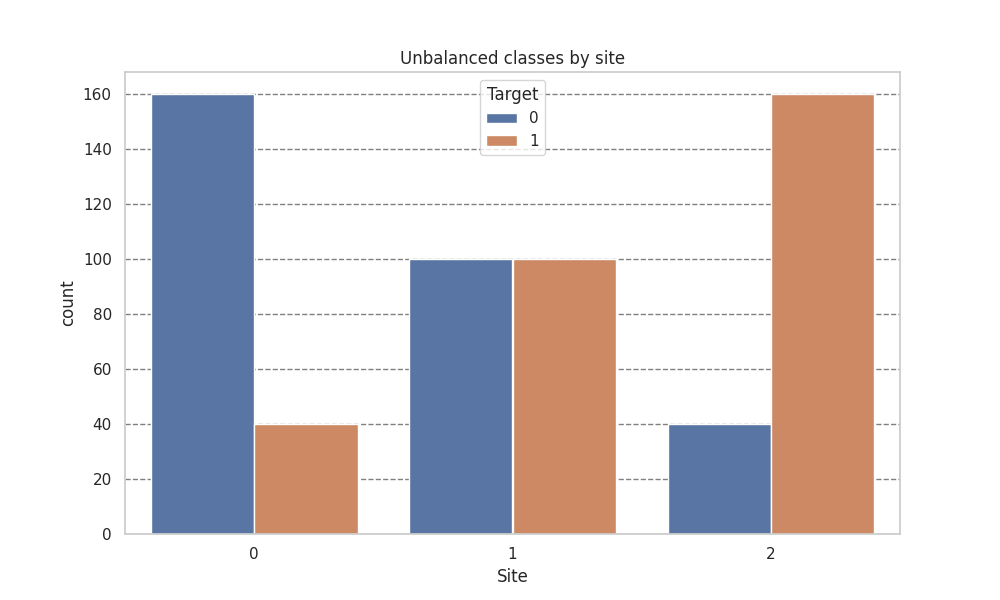

Plot before harmonisation

df = pd.DataFrame({"Target": y, "Site": sites})

plt.figure(figsize=[10, 6])
plt.title("Unbalanced classes by site")
sns.countplot(df, x="Site", hue="Target")
plt.grid(axis="y", color="black", alpha=0.5, linestyle="--")

Harmonisation

Apply Inter-Site Matched Interpolation (ISMI)

We use ISMI with the following configuration:

• Mode: pairwise (all site combinations)

• Matching: Age (±5 years tolerance) and Sex (exact match)

• Alpha: 0.3 (constant) - keeps synthetic samples closer to base site

• k: 2 (generate 2 synthetic samples per match)

# Configure ISMI
ismi = InterSiteMatchedInterpolation(
    covariate_tolerance=5,  # tolerance for age
    concatenate=False,
)

# Apply interpolation
X_ismi, y_ismi = ismi.fit_resample(
    X, y, sites=sites, categorical_covariate=categorical_covariate, continuous_covariate=continuous_covariate
)
# To maintain compatibility with sklearn and imlearn, sites are stored as attributes
sites_ismi = ismi.sites_resampled_

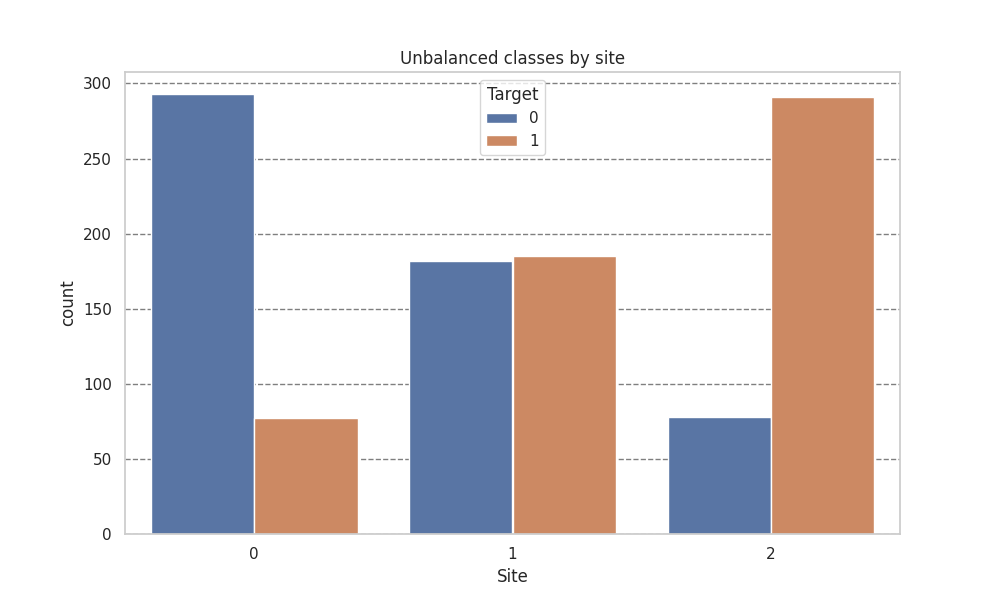

Plotting after harmonisation

Visualize Harmonized Data

df = pd.DataFrame({"Target": y_ismi, "Site": sites_ismi})

plt.figure(figsize=[10, 6])
plt.title("Unbalanced classes by site")
sns.countplot(df, x="Site", hue="Target")
plt.grid(axis="y", color="black", alpha=0.5, linestyle="--")

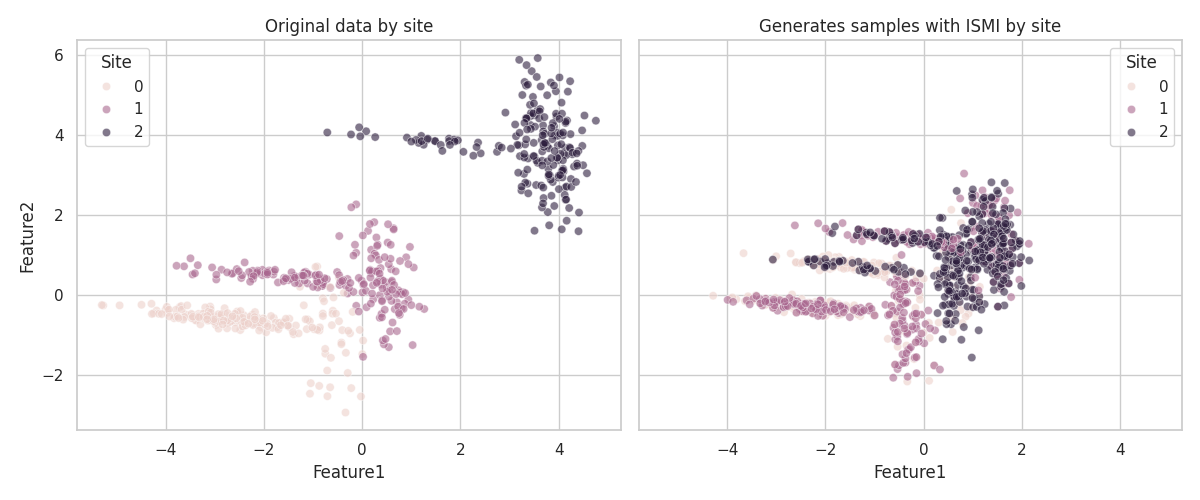

df_orig = pd.DataFrame(X, columns=["Feature1", "Feature2"])
df_orig["Site"] = sites
df_orig["Phase"] = "Original"

df_harm = pd.DataFrame(X_ismi, columns=["Feature1", "Feature2"])
df_harm["Site"] = sites_ismi
df_harm["Phase"] = "Harmonized"

fig, axes = plt.subplots(1, 2, figsize=(12, 5), sharex=True, sharey=True)
sns.scatterplot(data=df_orig, x="Feature1", y="Feature2", hue="Site", alpha=0.6, ax=axes[0])
axes[0].set_title("Original data by site")
sns.scatterplot(data=df_harm, x="Feature1", y="Feature2", hue="Site", alpha=0.6, ax=axes[1])
axes[1].set_title("Generates samples with ISMI by site")
plt.tight_layout()

Take-home message

This evaluation correctly measures whether ISMI helps the model learn site-invariant features that generalize to new, unseen sites.

Conclusion

This notebook demonstrated InterSiteMatchedInterpolation for multi-site harmonization. Key findings:

1. ISMI generates synthetic samples by interpolating between matched subjects across sites, using covariates (age, sex) to ensure biological plausibility.

2. Alpha reversal efficiently handles bidirectional interpolation without redundant matching (Site A→B with α, Site B→A with 1-α).

3. Configuration options (k, alpha, mode) allow flexible control over the harmonization process.

4. Unmatched samples tracking helps identify site pairs with poor overlap.

For real neuroimaging data, ISMI can help reduce site-related confounds while presaging biological signals relevant to the target variable.
