Using NeuroComBat with MAREoS dataset

Imports

import warnings

import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
from sklearn.ensemble import RandomForestClassifier
from sklearn.exceptions import ConvergenceWarning
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import balanced_accuracy_score

from uniharmony import verbosity
from uniharmony.combat import NeuroComBat
from uniharmony.datasets import load_MAREoS


sns.set_theme(style="whitegrid")
verbosity("warning")
warnings.filterwarnings(action="ignore", category=ConvergenceWarning)

Data loading

Load MAREoS benchmark dataset

• datasets = load_MAREoS() loads simulated neuroimaging benchmark data.

• The dataset contains multiple scenarios (true vs eos effects; simple vs interaction; example 1/2).

# Load the MAREoS dataset (made for benchmarking harmonisation methods)
datasets = load_MAREoS()

# Define the different effects, effect types, and examples to iterate over
effects = ["true", "eos"]
effect_types = ["simple", "interaction"]
effect_examples = ["1", "2"]

random_state = 23

# Assign an empty list to each key in the results dictionary
unharmonized_results = []
neurocombat_results = []

# Define the harmonisation model to use (NeuroComBat in this case)
harm_model = NeuroComBat()

Experiments

• Iterates all combinations:

  • effect = true or eos

  • effect_type = simple or interaction

  • example = 1 or 2

• For each combination:

  • Choose classifier: logistic regression for simple; random forest for interaction.

  • Extract data: X, y, sites, folds.

  • Do leave-one-fold-out cross-validation:

    • train on folds != current fold

    • test on fold == current fold

  • Train baseline classifier on unharmonized training data and compute balanced accuracy on raw test.

  • Harmonize training with NeuroComBat.fit_transform(...), then train classifier, transform test, compute balanced accuracy.

• Collect results into two lists and then into DataFrames.

for effect in effects:
    for e_types in effect_types:
        if e_types == "interaction":
            clf = RandomForestClassifier(n_estimators=10, random_state=random_state)
        elif e_types == "simple":
            clf = LogisticRegression(random_state=random_state)
        for e_example in effect_examples:
            example = effect + "_" + e_types + e_example

            data = datasets[example]

            sites = data["sites"]
            X = data["X"]
            folds = data["folds"]
            folds = pd.Series(folds)
            sites = data["sites"]

            target = data["y"]

            covars = target.ravel().reshape(-1, 1)

            for fold in folds.unique():
                # Train Data
                X = data["X"].copy()
                y = data["y"].copy()
                sites = data["sites"].copy()

                # Train Target
                X_train = X[data["folds"] != fold]
                site_train = sites[data["folds"] != fold]

                y_train = y[data["folds"] != fold]

                # Test data
                X_test = X[data["folds"] == fold]
                site_test = sites[data["folds"] == fold]

                # Test target
                y_test = y[data["folds"] == fold]

                # Unharmonized baseline model
                clf.fit(X_train, y_train)
                unharmonized_results.append(
                    [
                        balanced_accuracy_score(y_true=y_test, y_pred=clf.predict(X=X_test)),
                        fold,
                        effect,
                        e_types,
                        e_example,
                        example,
                    ]
                )

                # neuroComBat (do not include target as covariate - avoiding data leakage)
                X_train_harm = harm_model.fit_transform(X=X_train, sites=site_train)
                # Fit the model with the harmonized train
                clf.fit(X_train_harm, y_train)
                # harmonize the test data
                X_test_harm = harm_model.transform(X=X_test, sites=site_test)

                neurocombat_results.append(
                    [
                        balanced_accuracy_score(y_true=y_test, y_pred=clf.predict(X=X_test_harm)),
                        fold,
                        effect,
                        e_types,
                        e_example,
                        example,
                    ]
                )

# Results to dataframe
unharmonized_results = pd.DataFrame(data=unharmonized_results, columns=["bACC", "Fold", "Effect", "Type", "Example", "Name"])
unharmonized_results["Method"] = "Unharmonized Baseline"

neurocombat_results = pd.DataFrame(data=neurocombat_results, columns=["bACC", "Fold", "Effect", "Type", "Example", "Name"])
neurocombat_results["Method"] = "neuroComBat"

results = pd.concat([unharmonized_results, neurocombat_results])

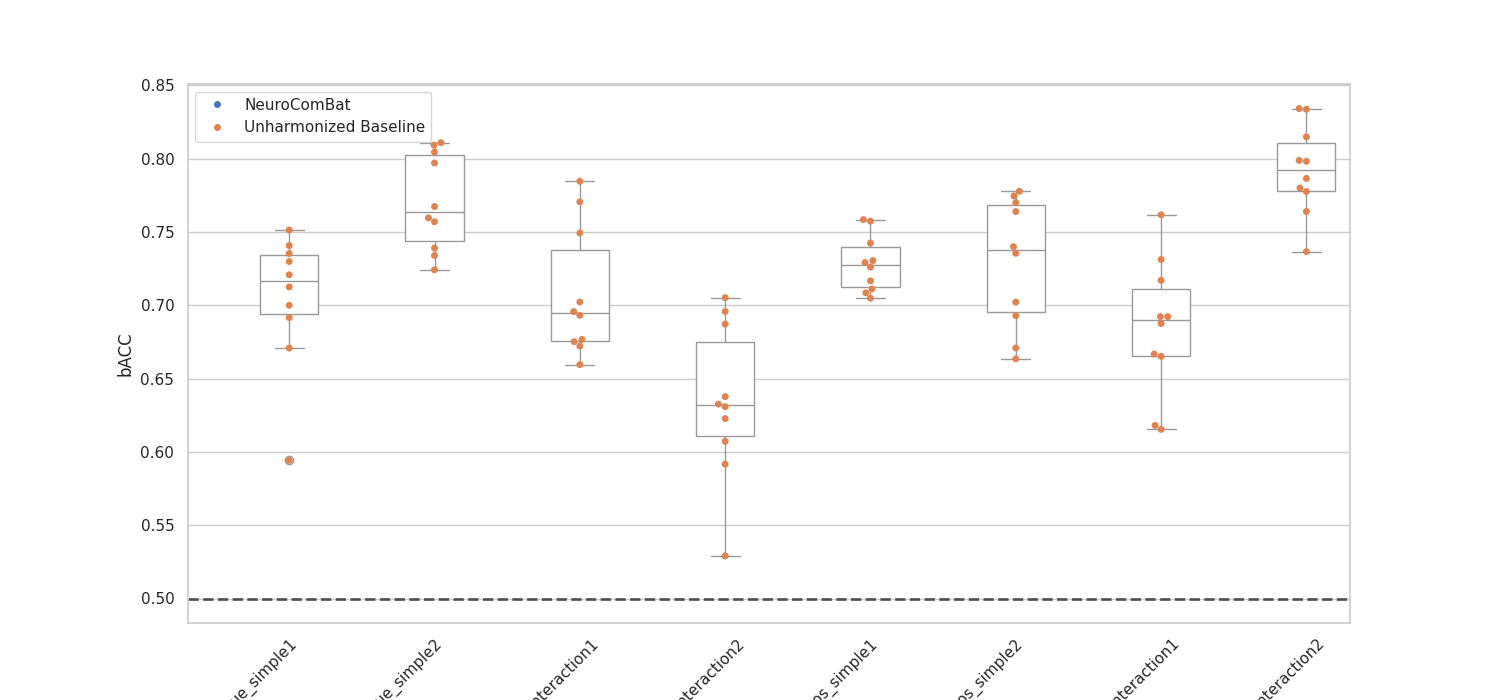

Plotting

fig, ax = plt.subplots(1, 1, figsize=[15, 7])

harm_methods = [
    "NeuroComBat",
    "Unharmonized Baseline",
]

sns.swarmplot(data=results, x="Name", y="bACC", hue="Method", hue_order=harm_methods, dodge=True, ax=ax)

sns.boxplot(
    data=results,
    color="w",
    zorder=1,
    x="Name",
    y="bACC",
    hue="Method",
    hue_order=harm_methods,
    dodge=True,
    ax=ax,
    palette=["w"] * len(harm_methods),
)
handles, labels = ax.get_legend_handles_labels()
ax.legend(handles[: len(harm_methods)], labels[: len(harm_methods)])
ax.axhline(0.5, lw=2, color="k", ls="--", alpha=0.7, label="Chance level")
plt.grid(axis="y")
plt.grid(axis="y")
plt.xticks(rotation=45)

plt.show()

Take-home message

NeuroComBat removes the eos site effect while preserving the “true” signal. The plot and results demonstrate the method’s ability to reduce spurious site-related variation and maintain true biological effect performance.
